NONLINEAR SOLUTIONS LLC, Shock/Impact

Solution:

Developed a finite element model of the intertank and calculated the shock response shown in Figure 1:

• Space Shuttle Intertank model was developed from drawings
• Solid Rocket Booster (SRB) separation shock loading was applied
• Response velocity contours displayed

• SRS plotted as a function of distance from the shock source
• Analysis predicted reduced shock failure risk for the redesigned Solid Rocket Booster Bolt Catcher

Figure 1. Space Shuttle Intertank response to redesigned Solid Rocket Booster Bolt Catcher

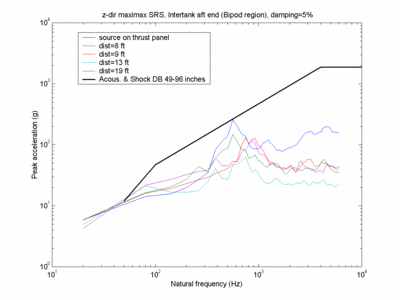

Figure 2. Calculation of Shock Response Spectra (SRS) near Intertank Bipod attachment
